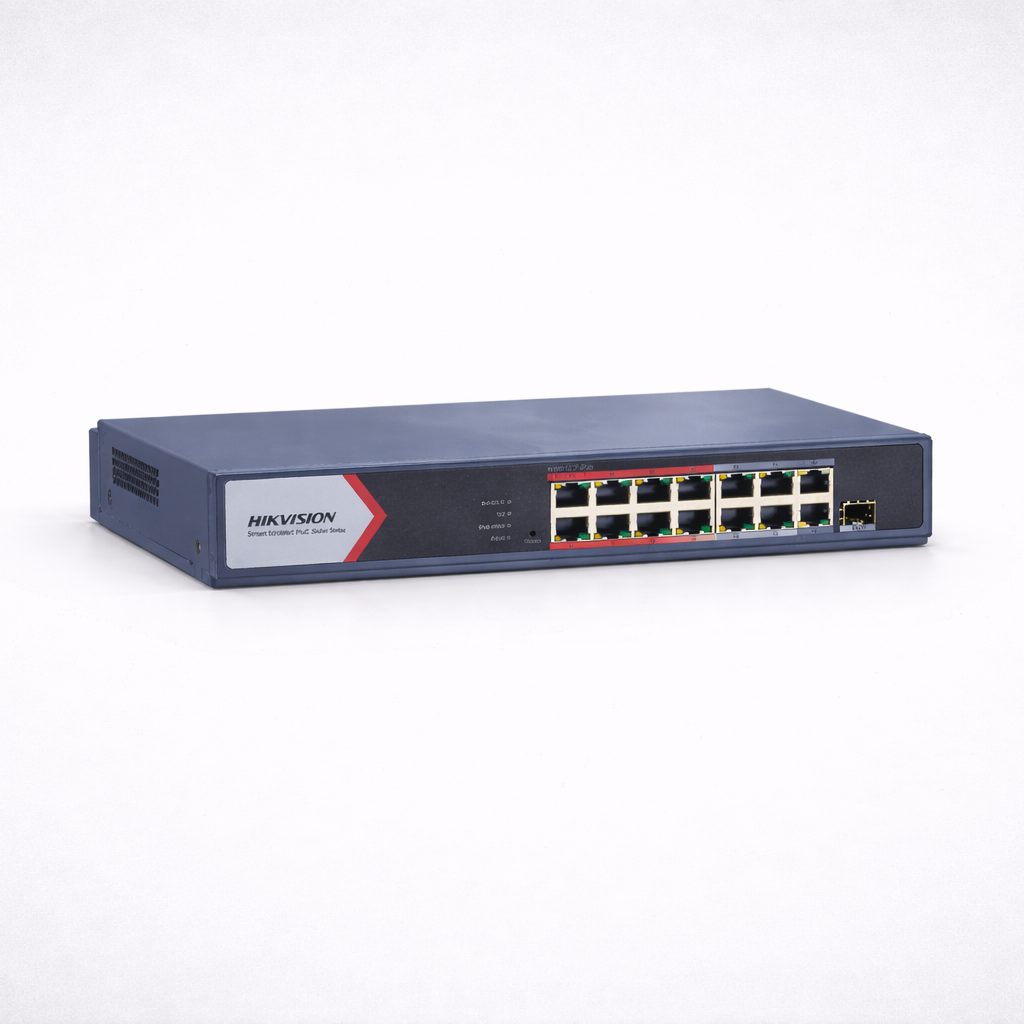

Hikvision 16-Port Fast Ethernet Smart PoE Switch
Sale price
$16.95
Regular price
$56.50
- Stock: In Stock
- Brand: HIKVISION
- Model: DS-3E1318P-EI/M
- Weight: 3.00kg
- Dimensions: 440.00mm x 44.00mm x 220.80mm
- Location: Store
Hikvision 16-Port Fast Ethernet Smart PoE Switch is designed to provide stable power and data transmission for medium surveillance and networking installations.
It features 16 × 10/100M PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit combo port, with a total PoE power budget of 130 W. The switch supports IEEE 802.3af/at, PoE watchdog, 802.1Q VLAN, STP/RSTP loop prevention, cable detection, and long-range PoE transmission up to 300 m.
It is a practical choice for IP cameras, offices, retail stores, reception areas, and other professional surveillance and network applications.
- 16 × 10/100M PoE ports
- 1 × Gigabit RJ45 port
- 1 × Gigabit combo port
- Total PoE power budget 130 W
- IEEE 802.3af/at support
- PoE watchdog support
- 802.1Q VLAN support
- STP/RSTP loop prevention
- Up to 300 m long-range PoE transmission
- 6 kV surge protection
| Specifications | |
| Installation | Rack mounting with mounting ears |
| Network | 16 × 10/100 Mbps PoE ports, 1 × Gigabit RJ45 port, 1 × Gigabit combo port |
| Working Temperature | 0 °C to 45 °C |
| Power | 100 to 240 VAC, 50/60 Hz, max. 3 A, IEEE 802.3af/at, max. 30 W per port, PoE power budget 130 W |
| Storage | Internal cache 4 Mbits |
| Switching capacity | Whole-device performance 9.2 Gbps, port performance 7.2 Gbps |
| Packet forwarding rate | Whole-device performance 6.84 Mpps, port performance 5.36 Mpps |
| Usage Area | Indoor |
| Surge Protection | 6 kV |
| Management Features | 802.1Q VLAN, PoE watchdog, STP/RSTP, cable detection, remote management via Hik-Partner Pro |
| Long Range PoE | Up to 300 m on ports 1 to 16 |
