Hikvision 4-Port Fast Ethernet Smart PoE Switch
Sale price
$3.60
Regular price
$12.00
Skip to product information
Hikvision 4-Port Fast Ethernet Smart PoE Switch
Sale price
$3.60
Regular price
$12.00
- Stock: In Stock
- Brand: HIKVISION
- Model: DS-3E1105P-EI/M
- Weight: 260.00g
- Dimensions: 121.10mm x 27.60mm x 83.10mm
- Location: Store

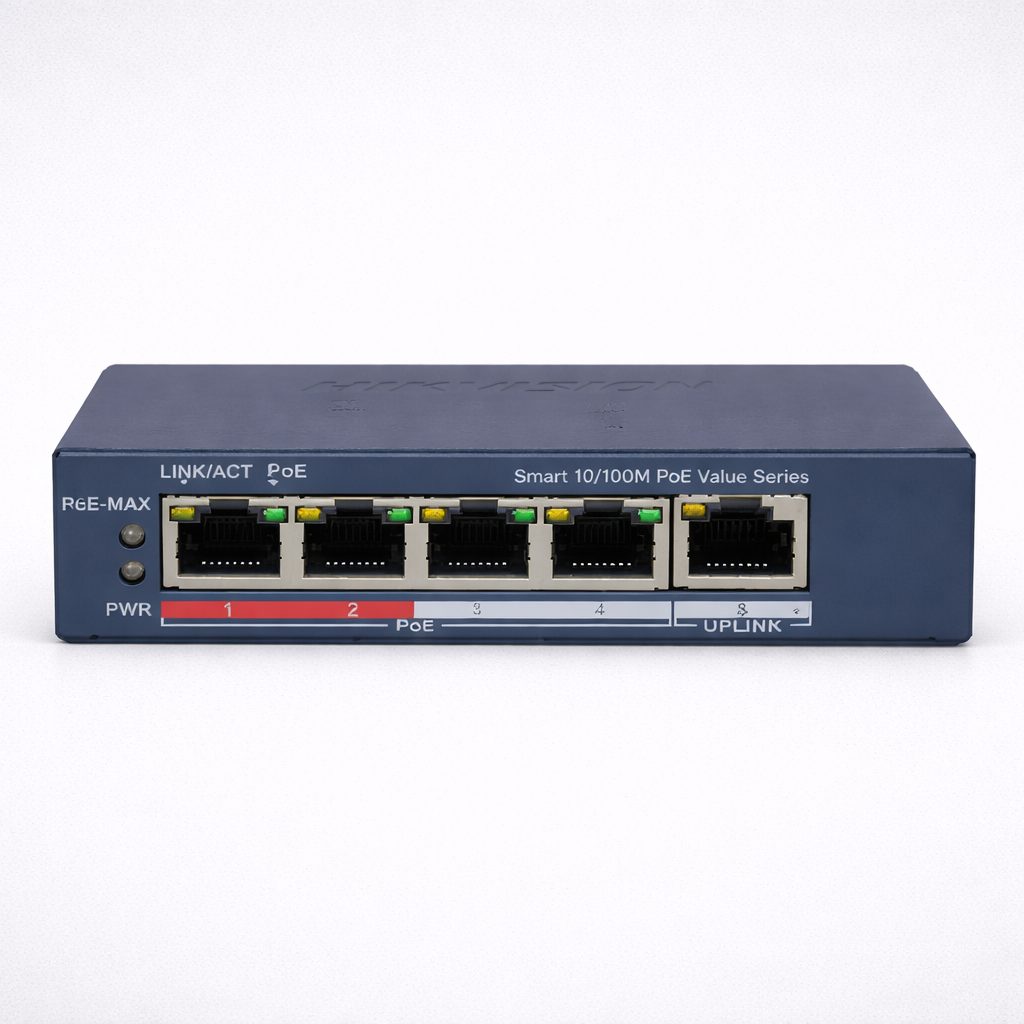

Hikvision 4-Port Fast Ethernet Smart PoE Switch is designed to provide stable power and data transmission for small surveillance and networking installations.
It features 4 × 10/100 Mbps PoE ports and 1 × 10/100 Mbps RJ45 uplink port, with a total PoE power budget of 45 W. The switch supports IEEE 802.3af/at, PoE watchdog, VLAN, loop prevention, cable detection, and long-range PoE transmission up to 300 m.
It is a practical choice for IP cameras, small offices, shops, reception areas, and other compact security and network applications.
- 4 × 10/100 Mbps PoE ports
- 1 × 10/100 Mbps RJ45 uplink port
- Total PoE power budget 45 W
- IEEE 802.3af/at support
- PoE watchdog support
- 802.1Q VLAN support
- STP/RSTP loop prevention
- Up to 300 m long-range PoE transmission
- 6 KV surge protection
| Specifications | |
| Installation | Desk-Mounted, Wall-Mounted |
| Network | 4 × 10/100 Mbps PoE ports and 1 × 10/100 Mbps RJ45 port |
| Working Temperature | 0 °C to 40 °C |
| Power | 54VDC, 0.92A, PoE standard IEEE 802.3af/at, max. port power 30 W, PoE power budget 45 W |
| Switching capacity | 1.2 Gbps |
| Packet forwarding rate | 0.89 Mpps |
| Usage Area | Indoor |
| Surge Protection | 6 KV |
