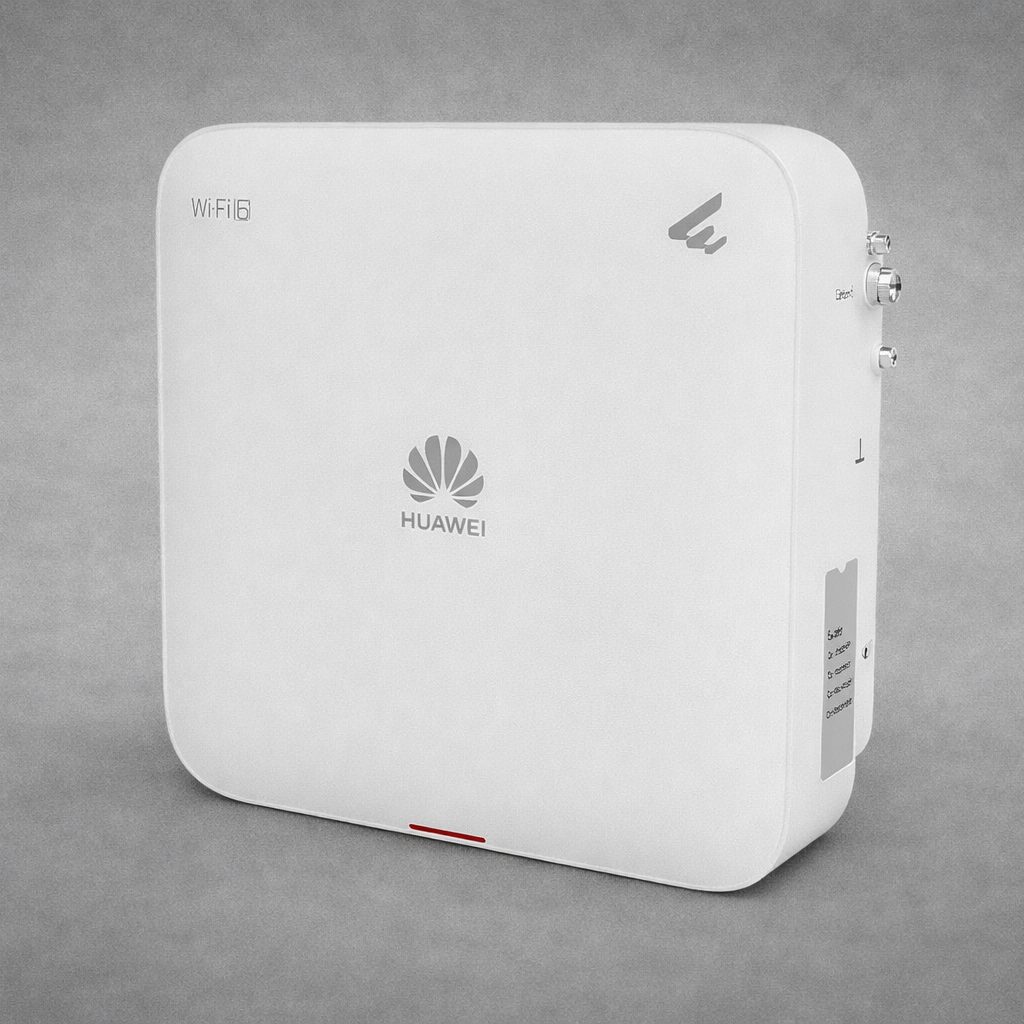

Huawei Outdoor Wi-Fi 6 Access Point 1.775Gbps Dual-Radio
Huawei Outdoor Wi-Fi 6 Access Point 1.775Gbps Dual-Radio
- Stock: In Stock
- Brand: HUAWEI
- Model: AP761
- Weight: 1.91kg
- Dimensions: 69.00mm x 200.00mm x 200.00mm
- Location: Store
The Huawei AP761 is a high-performance outdoor Wi-Fi 6 access point designed for enterprise and industrial wireless deployments requiring long-range coverage, high capacity, and reliable connectivity. Built with rugged outdoor-grade design and smart antenna technology, it ensures stable wireless performance even in harsh environments.
With a device rate of up to 1.775 Gbps and support for up to 1024 concurrent users, the AP761 is ideal for outdoor wireless deployments such as campuses, industrial facilities, stadiums, parks, and smart city infrastructure.
- Wi-Fi 6 (IEEE 802.11ax) outdoor access point
- Maximum device rate up to 1.775 Gbps
- Dual-radio architecture for improved performance
- Recommended users: 120
- Maximum supported users: 1024
- Transmit power up to 28 dBm
- 1 × GE electrical port
- 1 × SFP optical port
- Smart antenna technology
- Optimal outdoor coverage distance up to 500 meters
- Industrial-grade outdoor design
Ideal for campuses, outdoor enterprise environments, industrial zones, stadiums, and smart city wireless deployments.
| Specifications | |
| Operating Temperature | –40°C to +65°C (From 1800 m to 5000 m, the maximum operatingtemperature of the device decreases by 1°C for every 300 m increase in altitude.) |
| Operating Humidity | 0%–100% |
| Dimensions | 69 mm x 200 mm x 200 mm |
| LED Indicator | Indicate the power-on, startup, running, alarm, and fault states ofthe system |
| Weight | 1.91 kg |
| Port | 1 x 10M/100M/GE electrical port1 x SFP optical port |
| Maximum power consumption | 17.7 W |
| Storage Temperature | –40°C to +85°C |
| Power input | PoE power supply: in compliance with IEEE 802.3at/af |
| Altitude | –60 m to +5000 m |
| Atmospheric pressure | 53 kPa to 106 kPa |
| Antenna type | Built-in directional antennas |
| Antenna gain | 2.4 GHz: 10 dBi5 GHz: 11 dBi |
| Maximum quantity of SSIDs on each radio | ≤ 16 |
| Maximum transmit power | 2.4 GHz: 28 dBm (combined power)5 GHz: 27 dBm (combined power) |
| Power adjustment increment | 1 dBm |
| IP rating | IP68 |
| Maximum number of STAs | ≤ 1024 (512/radio) |
| Maximum number of non-overlapping channels | 2.4 GHz (2.412 GHz to 2.472 GHz)⚫ 802.11b/g− 20 MHz: 3⚫ 802.11n− 20 MHz: 3− 40 MHz: 1⚫ 802.11ax− 20 MHz: 3− 40 MHz: 15 GHz (5.18 GHz to 5.825 GHz)⚫ 802.11a− 20 MHz: 13⚫ 802.11n − 20 MHz: 1313− 40 MHz: 6⚫ 802.11ac− 20 MHz: 13− 40 MHz: 6− 80 MHz: 3⚫ 802.11ax− 20 MHz: 13− 40 MHz: 6− 80 MHz: 3 |
