Huawei Wi-Fi 6 Wall Plate Access Point 1.775 Gbps
Sale price
$8.10
Regular price
$27.00
Skip to product information
Huawei Wi-Fi 6 Wall Plate Access Point 1.775 Gbps
Sale price
$8.10
Regular price
$27.00
- Stock: In Stock
- Brand: HUAWEI
- Model: AP160
- Weight: 140.00g
- Dimensions: 86.00mm x 86.00mm x 42.50mm
- Location: Store

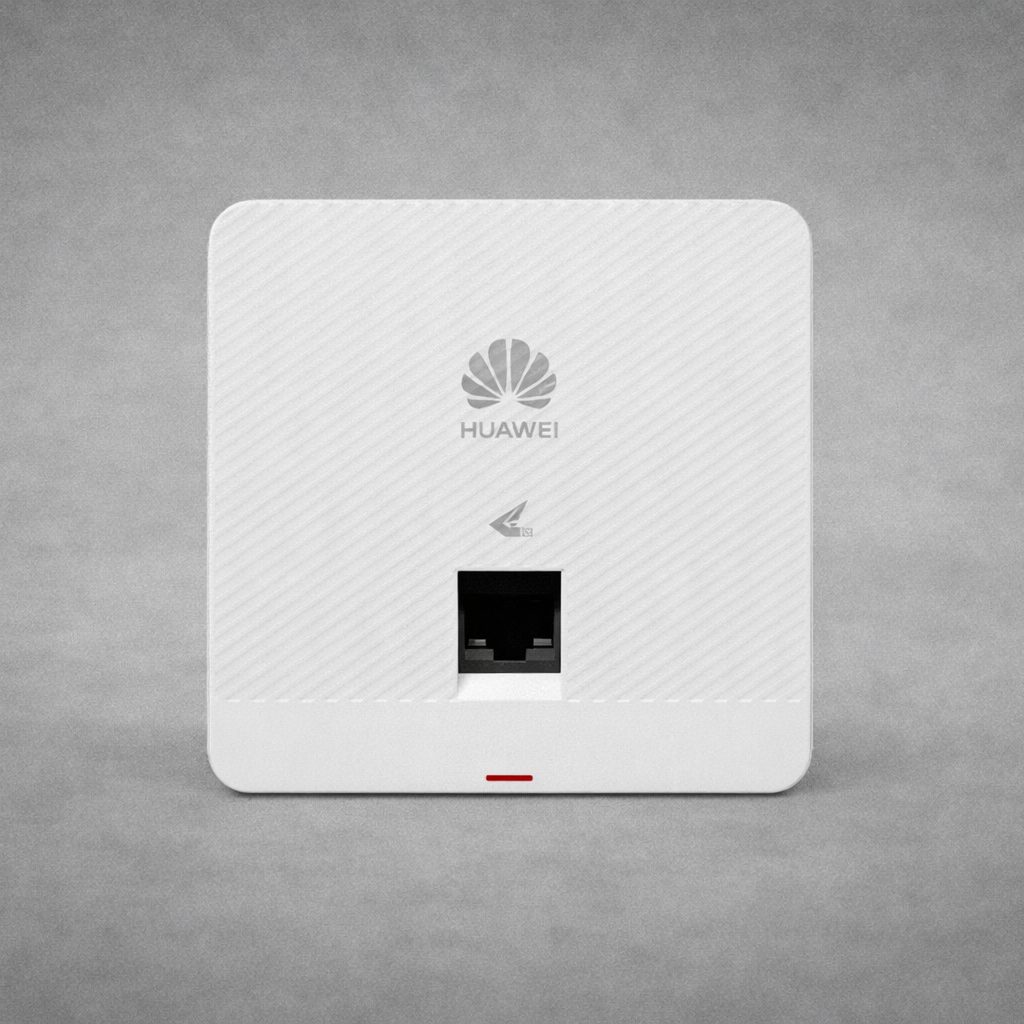

Huawei eKitEngine AP160 Wi-Fi 6 Wall Plate Access Point
The Huawei eKitEngine AP160 is a compact and powerful Wi-Fi 6 (802.11ax) wall plate access point designed to deliver high-speed and reliable wireless connectivity for enterprise, commercial, and hospitality environments.
Featuring dual-band 2×2 MU-MIMO technology, the AP160 provides simultaneous service on both 2.4 GHz and 5 GHz bands, achieving a maximum data rate of up to 1.775 Gbps. Its ultra-thin design allows seamless installation into standard wall junction boxes while maintaining professional aesthetics.
Key Features:
- Wi-Fi 6 (802.11ax) dual-band access point
- Maximum wireless speed up to 1.775 Gbps
- Dual-band 2×2 MU-MIMO support
- Built-in smart antennas for optimized coverage
- Ultra-thin wall plate design
- 1 × GE uplink port and 1 × GE downlink port
- PoE powered (IEEE 802.3af)
- Supports cloud, Fit, and Fat working modes
- Ideal for offices, hotels, and enterprise environments
Applications:
- Enterprise offices
- Hotels and hospitality
- Commercial buildings
- Educational institutions
- Indoor wireless networking environments
| Specifications | |
| Installation | Junction Box |
| Dimensions | 86 mm x 42.5 mm x 86 mm (3.39 in. x 1.76 in. x 3.39 in.) |
| Weight | 0.14 kg |
| Maximum power consumption | 9.1 |
| Input voltage range | PoE: 802.3af |
| Ground | floating ground |
| Radio number | 2 |
| Storage Temperature | –40°C to +70°C (–40°F to +158°F) |
| Atmospheric pressure | 53 kPa – 106 kPa ETSI 300 019-2-3 |
| Antenna gain | 2.4G: 3 dBi/chain (peak) 3 dBi (combined gain) 5G: 2 dBi/chain (peak value) 1 dBi (combined gain) |
| Maximum transmit power | 2.4G: 17 dBm/chain 20 dBm (combined power) 5G: 17 dBm/chain 20 dBm (combined power) |
| Power supply mode | PoE |
| Service port surge protection | PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion C |
| Maximum number of physical ports on the entire device | GE (RJ45) x 2, 10M/100M/1000M auto-sensing |
| Long-term operating temperature | –10°C to +50°C (14°F to 122°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.) |
| Long-term operating relative humidity | 5% RH to 95% RH |
| Long-term operating altitude | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Operating frequency band | • 2.4GHz • 5GHz |
| Radio interface | Built-in smart antennas |
| Single-frequency transmit power | 2.4G: 0 dBm~17 dBm /chain 5G: 0 dBm~17 dBm /chain |
